概述

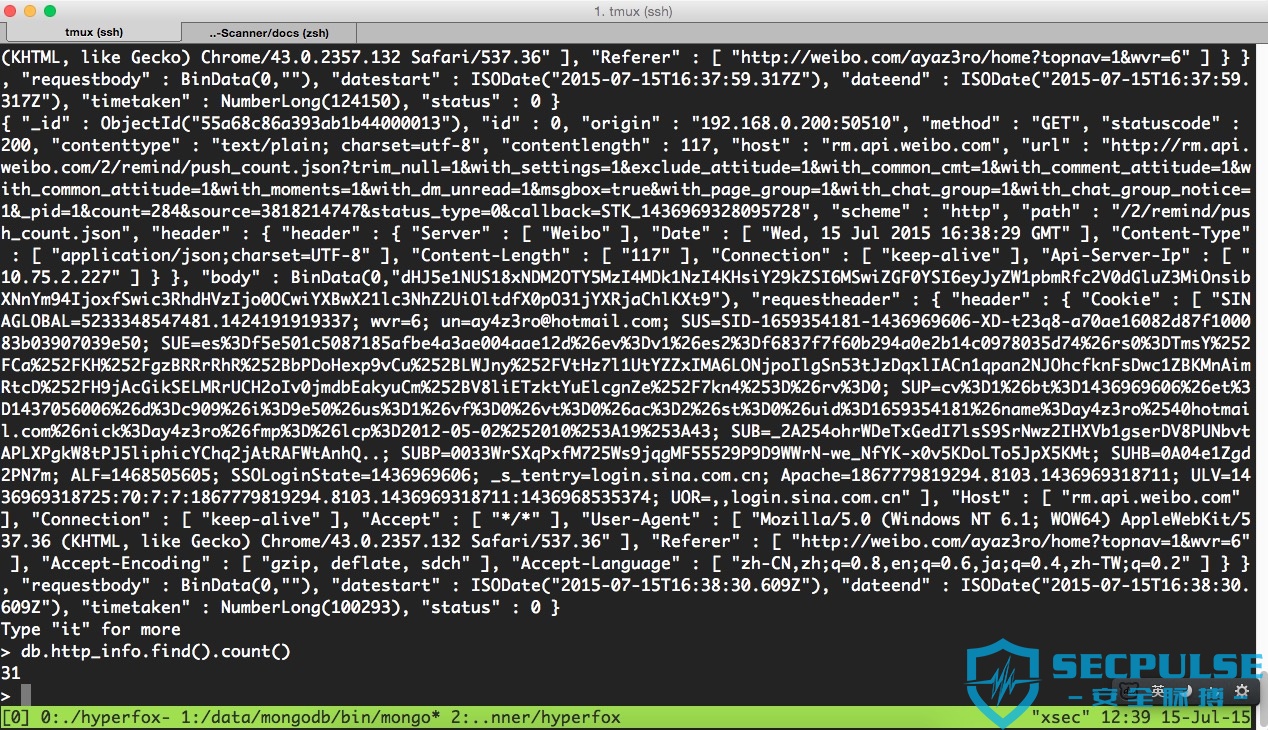

Transparent-Proxy-Scanner是一个基于vpn和透明代理的web漏洞扫描器，本文是vpn + 透明代理式的web漏洞扫描器的实现的简单说明。用户连接vpn后访问网站时就会把网站的请求与响应信息保存到mongodb中，然后web扫描器从数据库中读取请求信息并进行扫描。

架构说明

透明代理的实现

透明代理是在 https://github.com/xiam/hyperfox 这个项目的基础上改的，hyperfox是go语言实现的一个http/https的透明代理。

hyperfox本来是用 upper.io/db 这个orm将数据存入sqlite中的，我个人比较喜欢mongodb，于是就改成将数据存入mongodb中。

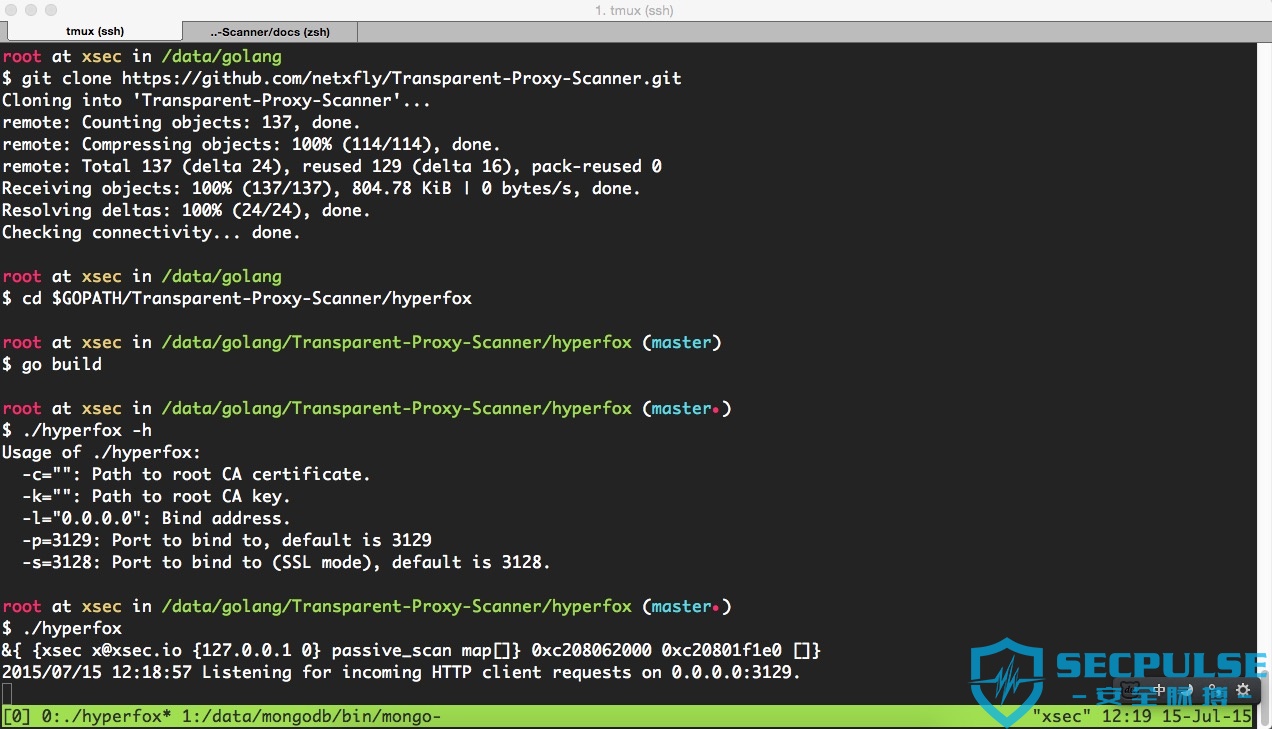

依赖包安装

go get github.com/netxfly/Transparent-Proxy-Scanner/hyperfox
go get github.com/toolkits/slice
go get upper.io/db
go get github.com/gorilla/mux
go get menteslibres.net/gosexy/to

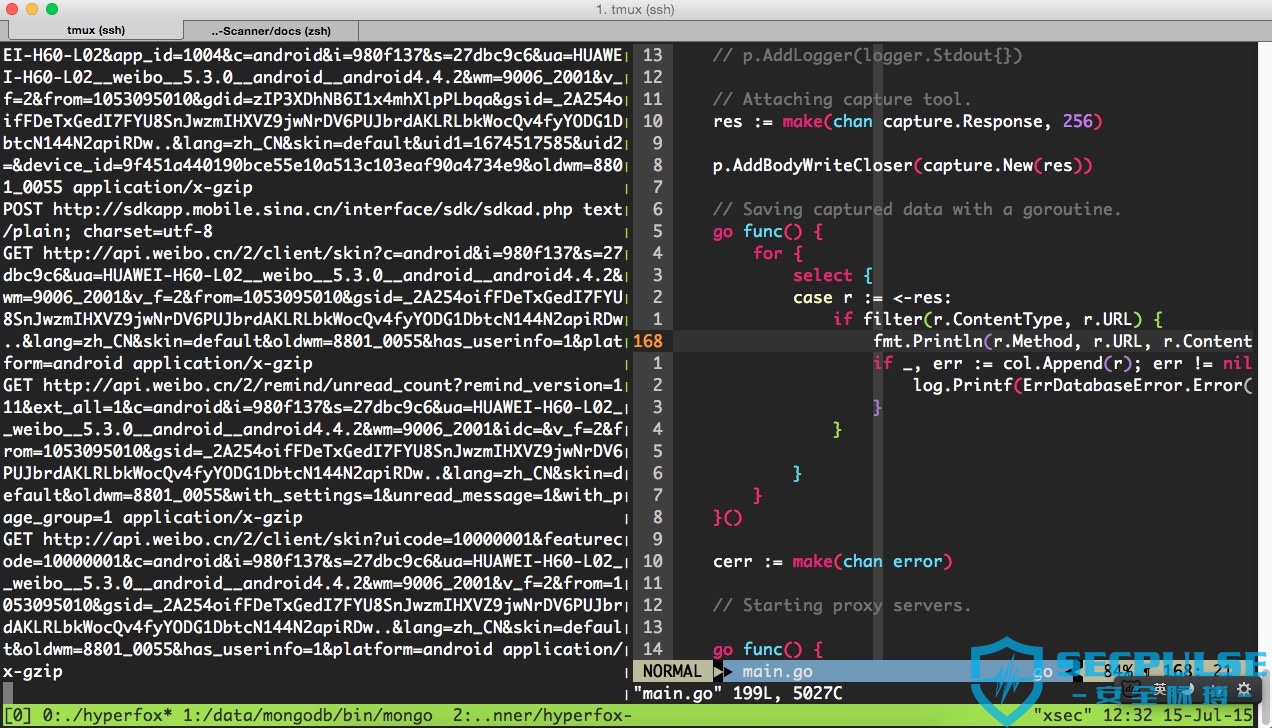

透明代理的部分实现代码

package main

import (
	"flag"
	"fmt"
	"github.com/netxfly/Transparent-Proxy-Scanner/hyperfox/proxy"
	"github.com/netxfly/Transparent-Proxy-Scanner/hyperfox/tools/capture"
	"strings"
	// "github.com/netxfly/Transparent-Proxy-Scanner/hyperfox/tools/logger"
	"github.com/toolkits/slice"
	"log"
	"net/url"
	"os"
	"upper.io/db"
	"upper.io/db/mongo"
)

const version = "0.9"

const (
	defaultAddress = `0.0.0.0`
	defaultPort    = uint(3129)
	defaultSSLPort = uint(3128)
)

const (
	Host     = "127.0.0.1"
	Port     = "27017"
	User     = "xsec"
	Password = "[email protected]"
	Database = "passive_scan"
)

var settings = mongo.ConnectionURL{
	Address:  db.Host(Host), // MongoDB hostname.
	Database: Database,      // Database name.
	User:     User,          // Optional user name.
	Password: Password,      // Optional user password.
}

var (
	flagAddress     = flag.String("l", defaultAddress, "Bind address.")
	flagPort        = flag.Uint("p", defaultPort, "Port to bind to, default is 3129")
	flagSSLPort     = flag.Uint("s", defaultSSLPort, "Port to bind to (SSL mode), default is 3128.")
	flagSSLCertFile = flag.String("c", "", "Path to root CA certificate.")
	flagSSLKeyFile  = flag.String("k", "", "Path to root CA key.")
)

var (
	sess db.Database
	col  db.Collection
)

var (
	static_resource []string = []string{"js", "css", "jpg", "gif", "png", "exe", "zip", "rar", "ico",
		"gz", "7z", "tgz", "bmp", "pdf", "avi", "mp3", "mp4", "htm", "html", "shtml"}
)

// dbsetup sets up the database.
func dbsetup() error {
	var err error
	// Attemping to establish a connection to the database.
	sess, err = db.Open(mongo.Adapter, settings)
	fmt.Println(sess)

	if err != nil {
		log.Fatalf("db.Open(): %q\n", err)
	}

	// Pointing to the "http_info" table.
	col, err = sess.Collection("http_info")

	return nil
}

// filter function
func filter(content_type string, raw_url string) bool {
	ret := false
	if strings.Contains(content_type, "text/plain") || strings.Contains(content_type, "application/x-gzip") {
		url_parsed, _ := url.Parse(raw_url)
		path := url_parsed.Path
		t := strings.Split(path[1:], ".")
		suffix := t[len(t)-1]
		if !slice.ContainsString(static_resource, suffix) {
			ret = true
		}

	}
	return ret
}

// Parses flags and initializes Hyperfox tool.
func main() {
	var err error
	var sslEnabled bool

	// Parsing command line flags.
	flag.Parse()

	// Opening database.
	if err = dbsetup(); err != nil {
		log.Fatalf("db: %q", err)
	}

	// Remember to close the database session.
	defer sess.Close()

	// Is SSL enabled?
	if *flagSSLPort > 0 && *flagSSLCertFile != "" {
		sslEnabled = true
	}

	// User requested SSL mode.
	if sslEnabled {
		if *flagSSLCertFile == "" {
			flag.Usage()
			log.Fatal(ErrMissingSSLCert)
		}

		if *flagSSLKeyFile == "" {
			flag.Usage()
			log.Fatal(ErrMissingSSLKey)
		}

		os.Setenv(proxy.EnvSSLCert, *flagSSLCertFile)
		os.Setenv(proxy.EnvSSLKey, *flagSSLKeyFile)
	}

	// Creatig proxy.
	p := proxy.NewProxy()

	// Attaching logger.
	// p.AddLogger(logger.Stdout{})

	// Attaching capture tool.
	res := make(chan capture.Response, 256)

	p.AddBodyWriteCloser(capture.New(res))

	// Saving captured data with a goroutine.
	go func() {
		for {
			select {
			case r := <-res:
				if filter(r.ContentType, r.URL) {
					// fmt.Println(r.Method, r.URL, r.ContentType)
					if _, err := col.Append(r); err != nil {
						log.Printf(ErrDatabaseError.Error(), err)
					}
				}

			}
		}
	}()

	cerr := make(chan error)

	// Starting proxy servers.

	go func() {
		if err := p.Start(fmt.Sprintf("%s:%d", *flagAddress, *flagPort)); err != nil {
			cerr <- err
		}
	}()

	if sslEnabled {
		go func() {
			if err := p.StartTLS(fmt.Sprintf("%s:%d", *flagAddress, *flagSSLPort)); err != nil {
				cerr <- err
			}
		}()
	}

	err = <-cerr

	log.Fatalf(ErrBindFailed.Error(), err)
}
